PRODUCT MANUAL

VPNdukevilla

Control plane for StrongSwan and WireGuard · User and operations guide

Publisher	DukeVilla
Document version	1.0.4
Release date	October 19, 2026
Classification	Product documentation

Operations document. It contains no passwords, PSKs, SNMP community strings, or private keys.

Document control

Field	Contents
Purpose	Provide a reusable description of every menu, field, administrative workflow, execution mode, integration, diagnostic, backup, and maintenance function in VPNdukevilla 1.0.4.
Version	1.0.4
Status	Ready for release
Publisher	DukeVilla
Intended audience	VPN administrators and operators
Audience	Administrators and operators. Credentials and secrets are delivered through a separate secure channel.

Security notice

IMPORTANT	This manual describes procedures and reference values, but deliberately omits passwords, PSKs, SNMP community strings, tokens, and keys. Do not copy secrets into tickets, email, or screenshots. Rotate any secret that may have been exposed.

Contents

Section	Topic
1	Description and scope
2	Architecture and security
3	Sign-in and roles
4	Overview
5	Tunnels
6	Editing tunnels
7	Configuration and Integrations
8	Diagnostics
9	Maintenance
10	DRY RUN and LIVE modes
11	Apply and rollback
12	Backup and restore
13	Updates
14	Operations and escalation
15	Appendices

Description and scope

VPNdukevilla is a web control interface for inventorying, generating, applying, and verifying VPN configurations. In version 1.0.4, StrongSwan is operational and WireGuard is prepared for a later release. This version adds managed Docker application integrations and a signed updater with backup and transactional rollback.

Capability	Version 1.0.4
Tunnel inventory	Yes
StrongSwan / IKEv2	Yes
WireGuard	Inventory and preparation; activation in a later release
CHILD_SA status	Yes, read from the host
Ping / traceroute	Yes, through the host agent
Events / CSV	Yes
admin and view users	Yes
Secret-free backup	Yes
Sanitized system radiography	Yes
Checking for updates	Signed channel: download, deliberate installation, health check, and automatic rollback
Automatic updates	Staged download; deliberate activation by an administrator
Application integrations	LibreNMS, Facil IoT, and traDUKtor with automatic detection

Architecture and security

Component	Privilege	Function
Web container	No Linux capabilities	UI, API, users, inventory, and PSK encryption.
SQLite /data	Persistent	Users, tunnels, execution mode, and encrypted PSKs.
Host agent	Privileged and local	Diagnostics, atomic writes, restart, verification, and rollback.
Unix socket	Local and authenticated	Web-to-agent channel; it is not exposed on the network.
StrongSwan	Host	IKEv2/IPsec negotiation.
Protected loopback	Host	Maintains 10.254.100.1/32 as the local management selector.

• The PSK is encrypted before it is stored.

• The API and listings never return the PSK.

• The preview masks secrets.

• The web container does not modify the host directly.

• Each apply operation creates a backup and rolls back if validation fails.

• Do not publish the .env file, database, or keys in Git or in the container image.

Sign-in and roles

Role	Permissions
admin	Create, edit, and delete tunnels; apply configurations; change mode; manage accounts; create backups and radiographies; install upgrades.
view	View Overview, Tunnels, events, previews, and diagnostics. Cannot modify the inventory or host.

1. Open the URL provided by the administrator.

2. Enter your username and password.

3. Change the initial password under Configuration.

4. Sign out when finished, especially on shared workstations.

IMPORTANT	Initial credentials are not published in this manual. They are delivered through a separate secure channel and must be changed at first sign-in.

Overview

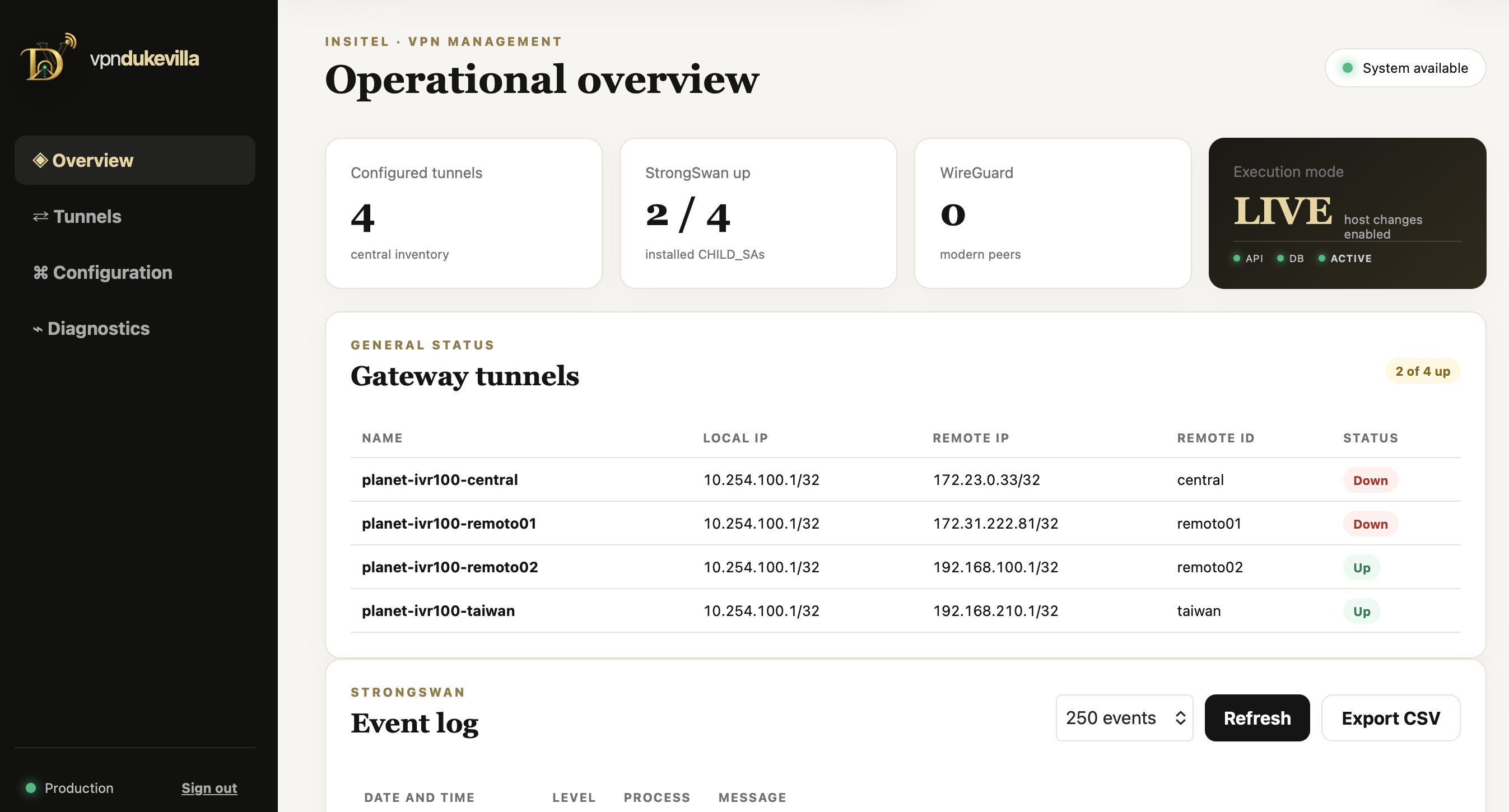

Figure 1. Overview with operational summary, tunnel status, and events.

Item	Interpretation
Configured tunnels	Number of connections stored in the inventory.
StrongSwan up	Installed CHILD_SAs / configured StrongSwan tunnels.
WireGuard	Inventoried WireGuard peers.
Execution mode	DRY RUN or LIVE, together with API, database, and agent health.
Gateway tunnels	Compact summary with name, selectors, Remote ID, and status.
Event log	StrongSwan events; initially collapsed, with Refresh and Export CSV controls.

IMPORTANT	Up means that a CHILD_SA is installed. To confirm end-to-end service, also ping the protected IP address.

Tunnels

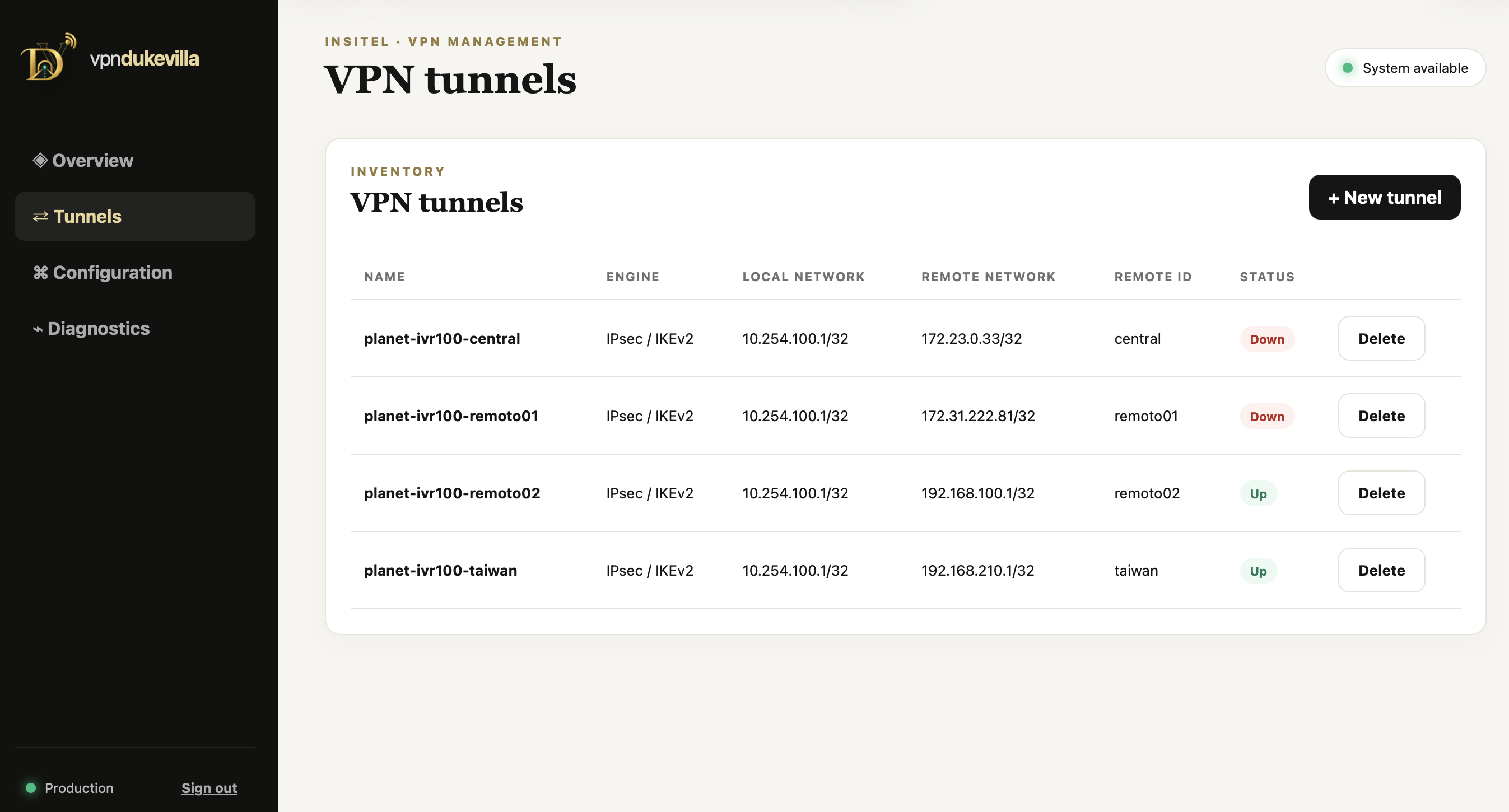

Figure 2. Tunnel inventory.

Column / action	Description
Name	Unique administrative identifier.
Engine	StrongSwan or WireGuard.
Local network	Local protected selector.
Remote network	Remote protected selector.
Remote ID	Expected IKE identity of the peer.
Status	Up, Down, or Not applied.
+ New tunnel	Opens the new tunnel form.
Edit	Allows fields to be edited and the PSK to be changed if required.
Delete	Deletes the record from inventory; confirmation and Apply are required to update the host.

Creating a tunnel

1. Select + New tunnel.

2. Complete every field according to the addressing plan.

3. Enter a strong, unique PSK delivered through a secure channel.

4. Select Save tunnel.

5. Open Configuration → Preview and review the generated configuration.

6. In LIVE mode, select Apply to materialize the inventory in StrongSwan.

7. Restart or activate the remote IPsec connection if the peer does not renegotiate automatically.

8. Confirm an Up state and run a ping to the protected address.

Editing tunnels

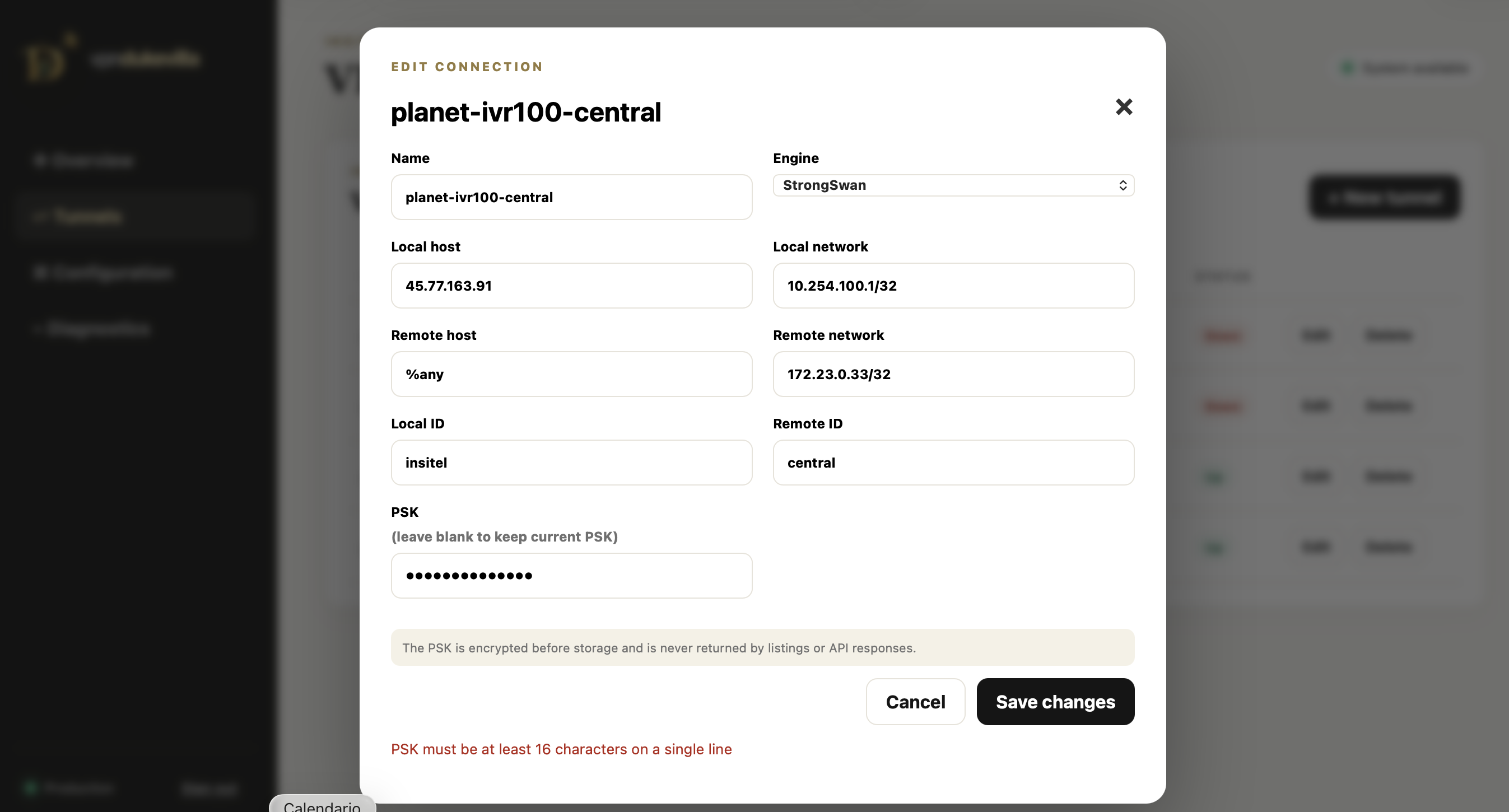

Figure 3. StrongSwan connection edit form.

Field	Rule	Example
Name	Unique, stable, lowercase letters and hyphens	ipsec-remote03
Engine	StrongSwan in production version 1.0.4	StrongSwan
Local host	Public IP or gateway listening address	Address assigned to the server
Local network	Local protected selector in CIDR notation	10.254.100.1/32
Remote host	%any for peers with dynamic IP addresses	%any
Remote network	Remote protected network in CIDR notation	192.0.2.10/32
Local ID	Identity presented by the gateway	gateway
Remote ID	Exact identity configured on the remote IPsec peer	remoto03
PSK	At least 16 characters on a single line	Secret delivered through a separate secure channel

Saving changes

• Save changes updates the inventory.

• Leaving the PSK field blank preserves the current PSK.

• Entering a new PSK replaces the current value and stores it encrypted.

• Saving is not the same as applying: review the preview and run Apply.

Configuration and Integrations

Item	Purpose
StrongSwan Preview	Displays ipsec.conf and ipsec.secrets with PSKs masked.
StrongSwan Apply	Sends inventory to the agent, validates, backs up, writes, restarts, verifies, and rolls back on failure.
WireGuard Preview	Generates the proposed configuration.
WireGuard Generate	Reserved for future WireGuard support.
Admin account	Changes the administrator username and password.
View account	Enables or disables the view account and sets its password.
LibreNMS	Enables monitoring, polling, syslog, and availability tests across protected networks.
Facil IoT	Enables access from detected Facil IoT containers to protected networks.
traDUKtor	Enables access from detected traDUKtor containers to protected networks.
Detected / Not detected	Indicates whether VPNdukevilla found compatible containers for the integration.
Apply integrations	Discovers containers and idempotently reconciles forwarding and source NAT rules.

IMPORTANT	Apply with no changes must be idempotent: it verifies state without changing the functional result. If an error appears, do not retry blindly; read the message and system radiography.

Diagnostics

Field	Purpose
Target	IP address or hostname to test. For IPsec validation, use an address inside the protected remote network.
Ping	Checks reachability and latency.
Traceroute	Displays hops to the destination; traceroute must be installed on the host.
Run	Requests the host agent to run the test and returns its output.

Interpretation

• Tunnel Up + successful ping: control plane and data plane are operational.

• Tunnel Up + failed ping: check selectors, firewall rules, protected IP, and ICMP.

• Tunnel Down + incoming IKE traffic: check IDs, PSK, proposals, and the CHILD_SA.

• No IKE traffic: check the peer, public IP, intermediate firewall, and UDP ports 500 and 4500.

Maintenance

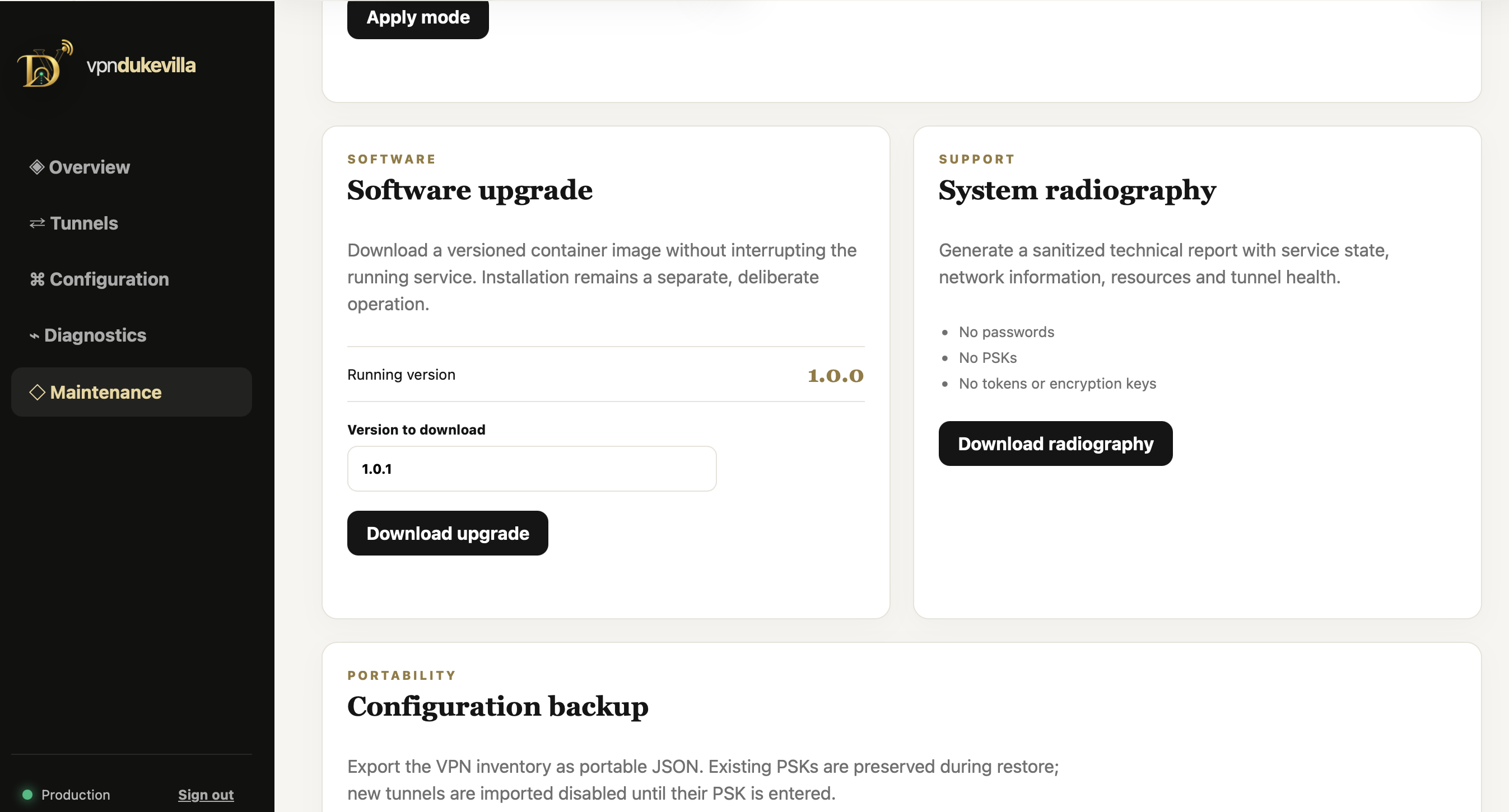

Figure 4. Maintenance page with execution mode, version, system radiography, and backup.

Tool	What it does	What it does not do
Execution mode	Selects DRY RUN or LIVE and requires Apply mode	Does not automatically apply tunnel configurations.
Check latest version	Queries the official signed channel, compares versions, and allows a newer release to be downloaded and verified.	Does not replace the running service until an administrator confirms Install update.
Install update	Installs the previously downloaded signed package, creates a backup, recreates the console, and performs a health check.	Is unavailable without a valid package; if the health check fails, it automatically restores the previous version.
System radiography	Downloads sanitized JSON containing service, network, resource, and tunnel health	Does not include secrets.
Download backup	Exports the inventory as portable JSON	Does not include PSKs, passwords, tokens, or keys.
Load backup	Merges a backup into the current inventory	Does not generate PSKs; new tunnels remain disabled.

DRY RUN and LIVE modes

Mode	Effect
DRY RUN	Allows inventory, previews, reports, and backups. Blocks diagnostics and actual host changes.
LIVE	Enables diagnostics and actual changes through the host agent.

1. Select the required mode.

2. Review the on-screen explanation.

3. Select Apply mode.

4. Confirm on Overview that the mode and agent status are consistent.

IMPORTANT	A new installation should remain in DRY RUN until it reaches its final location, receives its production addressing, and enters an approved migration window.

Apply and rollback

Transactional workflow

1. The application validates fields and PSKs.

2. The agent creates a backup of the active configuration.

3. It generates temporary files with restrictive permissions.

4. It validates the syntax.

5. It atomically replaces the StrongSwan files.

6. It restarts the service.

7. It runs statusall and verifies that the inventory was loaded.

8. If validation fails, it restores the backup and returns an explicit error.

Message	Meaning	Action
Host agent is unavailable	The UI could not contact the socket or agent	Check the service, socket, and permissions.
Apply failed; backup was restored	Validation or verification failed and the change was rolled back	Download a radiography and inspect the agent and StrongSwan.
statusall returned non-zero	StrongSwan did not report a healthy state	Check the service, plugins, and configuration before retrying.
Not applied	Inventory not materialized or DRY RUN active	Change to LIVE only during an approved maintenance window, then apply.

Backup and restore

Exporting a backup

1. Open Maintenance.

2. Select Download backup.

3. Store the JSON file in a secure repository with its date and version.

4. Confirm that the file opens and contains no secrets.

Restoring a backup

1. Back up the current state.

2. Select Load backup and choose the JSON file.

3. Review the summary of created and updated records.

4. Enter the PSKs for new connections.

5. Review Preview.

6. Apply in LIVE mode during an approved maintenance window.

IMPORTANT	A secret-free backup does not replace an encrypted database backup. For a complete migration, the database and PSK_ENCRYPTION_KEY must remain consistent and must be safeguarded separately.

Updates

Checking for updates

1. Select Check latest version.

2. If the versions match, the application reports that it is current and makes no changes.

3. If a newer version is available, review the proposed version and confirm the signed download.

4. Wait for hash and signature validation. The version is staged and Install update becomes available.

5. Download a backup and system radiography; during a maintenance window, select Install update and confirm.

6. The console restarts briefly and verifies that the new version is healthy.

7. Confirm the version, mode, agent, integrations, and tunnels. If the health check fails, the host restores the backup.

For the first field update, use a controlled maintenance window and retain administrative host access until verification is complete.

Principle	Recommendation
Versioning	Use immutable tags such as 1.0.4; do not use latest in production.
Image	Distribute the container image; source code does not need to be copied to the customer host.
Data	Keep /data persistent and backed up.
Rollback	Retain the previous image and a database backup.
Official channel	https://vpn.duke-villa.com/api/releases/latest
Automation	Check latest version downloads and verifies; Install update deliberately activates the release with backup, health check, and rollback.

Operations and escalation

Frequency	Activity
Daily	Review Overview, Down tunnels, and recent events.
When creating or editing	Save → Preview → Apply → Up → ping.
Weekly	Export CSV if flapping occurs and review disk space and services.
Monthly	Create a configuration backup and system radiography.
Before an upgrade	Confirm the backup, radiography, version, and maintenance window.
After restart	Confirm the container, agent, StrongSwan, protected loopback, and tunnels.

Minimum support information

• Installed version and execution mode.

• Date, time, and affected tunnel.

• Up, Down, or Not applied state.

• Ping and traceroute results.

• Relevant IKE event with no PSK or secret data.

• Sanitized system radiography.

• Most recent change and Apply result.

Appendices

Standardized IPsec peer template

Parameter	Baseline value
Role	Initiator
Remote host	Gateway public IP
Local network	Local protected network in CIDR notation
Remote network	10.10.0.0/24
Local ID	Unique gateway identity
Remote ID	Unique remote peer identity
IKE	v2
Phase 1	AES-256 / SHA2-256 / DH14
IKE lifetime	3 hours
Phase 2	AES-256 / SHA2-256 / PFS
ESP lifetime	1 hour
DPD	30 s / timeout 150 s / Restart

Provisioning checklist

• Unique ID and protected network.

• Strong, unique PSK.

• Inventory saved.

• Preview verified.

• Apply completed successfully.

• CHILD_SA Up.

• Protected-address ping successful.

• Device added to LibreNMS.

• Syslog received.

• Documentation updated.
